BAREX
Engineered for demanding operations.
01

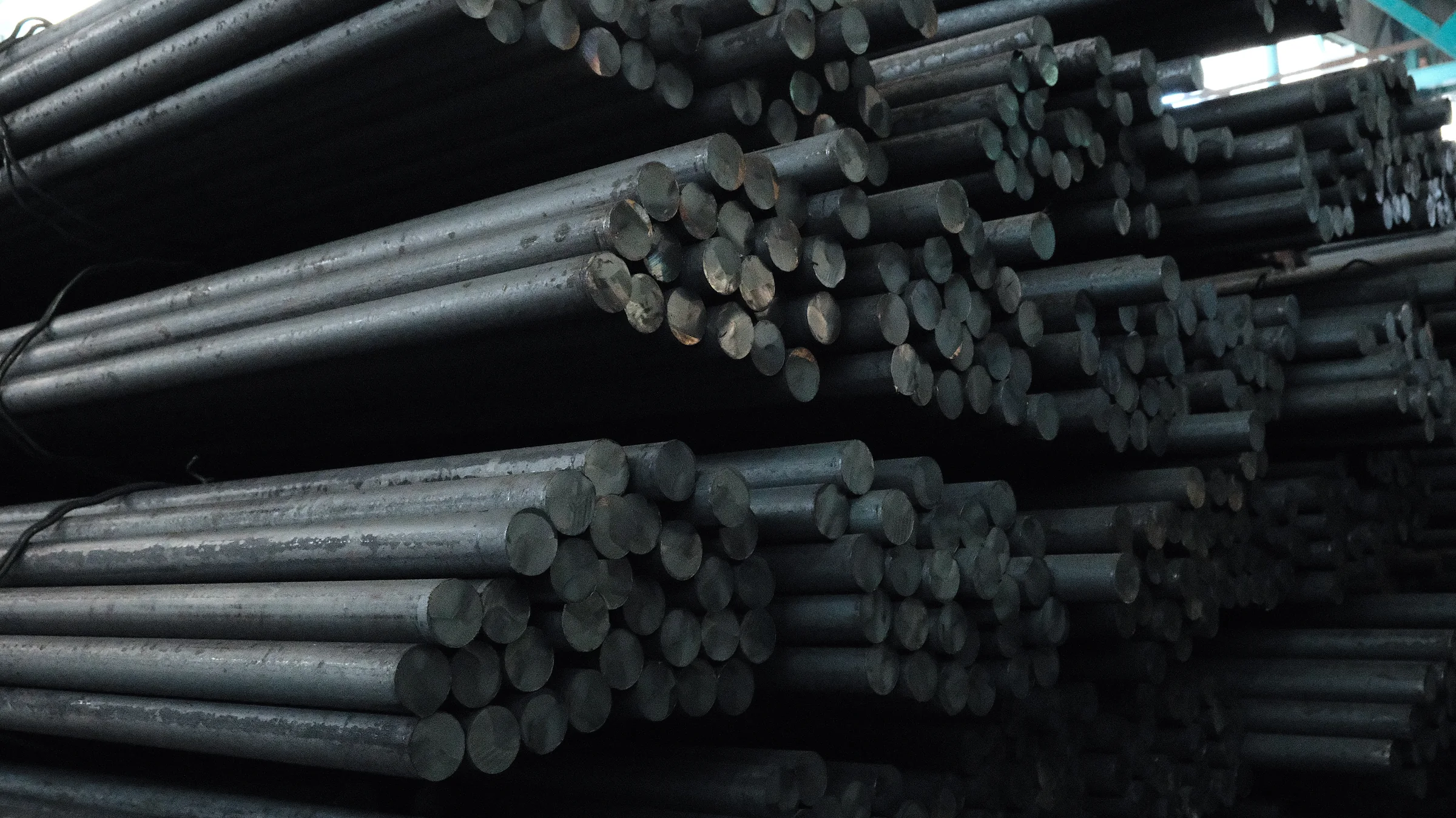

Barex products are manufactured in different compositions, diameters and lengths according to customer requirements.
Barex Steel Rod Features
Barex steel rods are produced in various dimensions using SAE/AISI 1060, 1065, 1070, 1080 and 1090 alloy grades, with typical hardness of 27–32 HRC or 266–304 HB.
02
TECHNICAL RANGE
| Product | Alloy grade | Hardness |
|---|---|---|
| BAREX STEEL BAR (various dimensions) | SAE 1060-1065-1070-1080-1090 | 27–32 HRC / 266–304 HB |
03
Chemical Composition of Barex Products
- Carbon: 0.57–0.95%
- Silicon: 0.10–0.40%
- Chromium: max. 1.50%
- Molybdenum: max. 0.10%
- Nickel: max. 0.40%
- Manganese: 0.60–1.90%
- Copper: max. 0.20%
- Sulphur: max. 0.04%
- Phosphorus: max. 0.04%
